Home Assistant National Rail Times Card with support for platform numbers

A custom Home Assistant card for the Lovelace theme to show next available trains to specific stops through the National Rail Darwin API.

Based upon previous work by @crismc (https://github.com/crismc/)

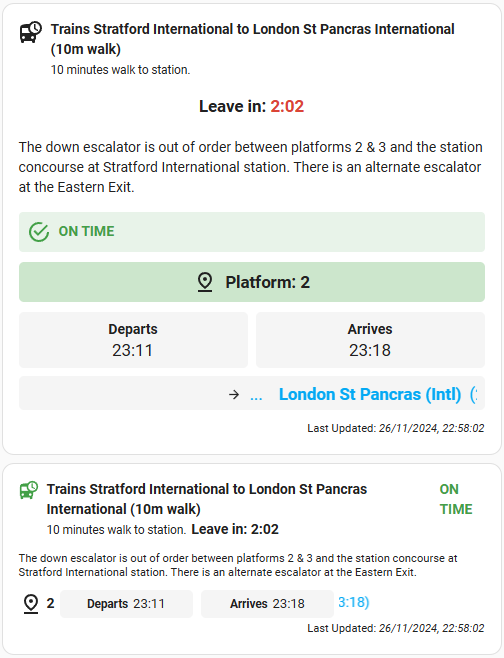

This version adds support for platform numbers and a countdown timer until you need to leave.

To be used with the Home Assistant custom component homeassistant_nationalrailtimes_integration (https://github.com/crismc/homeassistant_nationalrailtimes_integration)

Based on the community driven boilerplate of best practices for Home Assistant Lovelace custom cards (Boilerplate Card by @iantrich https://github.com/custom-cards/boilerplate-card)

Options

Name	Type	Requirement	Description	Default
type	string	Required	custom:nationalrail-times-card
name	string	Optional	Card name based on entity	none
show_error	boolean	Optional	Show error message such as no service data	true
show_warning	boolean	Optional	Show station alert messages	true
show_via_destination	boolean	Optional	Show if train goes via an alternate route	true
show_callingpoints	boolean	Optional	Show train service calling stops	true
show_status	boolean	Optional	Show service status (e.g. On Time, Delayed etc)	true
show_arrival_time	boolean	Optional	Show train service arrival time at destination	true
show_departure_time	boolean	Optional	Show train service departure time from primary station	true
show_lastupdated	boolean	Optional	Show when the service last communicated with the API	true
show_offset	boolean	Optional	Show walking time to station offset	true
show_offset_countdown	boolean	Optional	Show coundown until you need to leave calculated from walking time to station	true
show_platform	boolean	Optional	Show platform number train is due to leave from	true
entity	string	Optional	Home Assistant entity ID.	none

Install via HACS

The easiest way to install this frontend card is to install via HACS:

1. Simply go to HACS in your Home Assistant
2. Select 'Frontend'
3. In the top right of the screen, select the 3 dots and choose 'Custom repositories'
4. For the repository field enter 'https://github.com/dabc24/homeassistant_nationalrailtimes_lovelace'
5. Choose 'Dashboard' as the type
6. Add
7. Restart your Home Assistant
8. Explore & Download Repositories (depending on your version of Home Assistant)
9. Search for 'National Rail Departure Times'
10. Enjoy

Installing the card from source

Step 1

Clone the repository to your machine

Step 2

Install necessary modules (verified to work in node 8.x) yarn install or npm install

Step 3

Do a test lint & build on the project. You can see available scripts in the package.json npm run build

Step 4

Copy content of <project_dir>/dist to your Home Assistant instance /www/nationalrailtimes-card If directories do not exist, create them.

Step 5

Go to Settings > Dashboards, click the three dots menu in the top right and select Manage Resources. If you do not have the three dots, you will need to temporarily enable "Advanced Mode" within Profile

Step 6

Choose "Add Resource" and enter the following: URL: /local/nationalrailtimes-card/nationalrailtimes-card.js Resource Type: JavaScript Module

Step 7

If you created the /www directory, restart Home Assistant (Developer Tools > Restart)
