Tip

[Grade of Project] This project has received an overall grade of A+. All sub-grades (i.e. Game Trailer, Demo Video, Difficulty Level, Correctness, Innovation, Readability and Documentation) were also graded A+. It has received 3.53/5 in peer review.

Note

[ARCHIVED REPOSITORY] Following the end of the course, this repository has been archived and is no longer maintained.

Related Videos

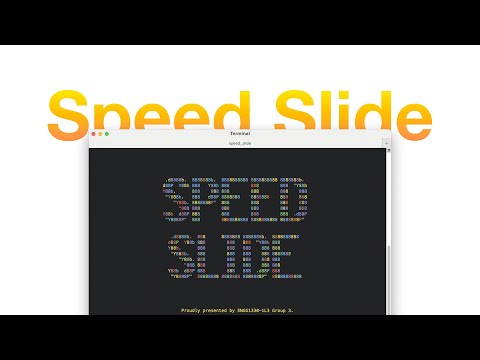

Demonstration	Trailer

SpeedSlide Manual for Players and Developers

Table of Contents

1. Introduction
2. Instructions for Players

• System Requirements and Prerequisites
• Launching the Game
• Main Menu
• Gameplay
• Troubleshooting

3. Instructions for Developers

• Build
• Debug Mode
• Project Structure
• Game Mechanics

0x00 Introduction

This document consists of two parts: one for players and one for developers. You will find information about how to launch and play the game, the goal and aim of the game in the first part. The second part is more technical and is intended for developers who would like to contribute or modify the game. This README provides only brief information on the gameplay and its implementations behind the scene.

0x01 Instructions for Players

1 System Requirements and Prerequisites

To run the game, you should ensure that you have:

• Python 3.11 or 3.12 installed. (Other versions may work, but they are not tested.)
• A terminal emulator that supports ANSI escape codes. (Windows Terminal is the suggested terminal emulator on Windows.)
• A terminal emulator that can display at least 110 columns and 33 rows.

2 Launching the Game

To launch the game, change the working directory to where main.py is located, activate a virtual environment (recommended, create one if there isn't any), then simply run the script main.py. An example is shown:

$ cd /path/to/speedslide/files/
$ virtualenv .venv
$ source .venv/bin/activate
(.venv) $ python3 main.py

Command Line Arguments

SpeedSlides accepts several command line arguments to modify the game's behaviour. The following is a reference of the available arguments:

--debug

Intended for developers' use only. Normal players should not use this option.

Enables debug mode. This was mainly used during development stage. Most of its functionalities have been removed in the final version. However, it still modifies certain game behaviours. You should refer to the developer's section for more details.

--graphics-mode=, -g=[normal | performant]

Choose the graphics mode to use for the game. The performant mode will reduce the framerate of certain animations to improve performance on slower devices. This is useful when running the game from a remote terminal like the Ed platform.

Default: normal

Example usage:

$ python3 main.py --graphics-mode=performant

3 Main Menu

After the title animation, you are presented with the main menu. You may choose from one of the following options:

• [H]ow to play: Displays the help information. Provides introduction to the game's goal and how you may control it. There are also useful tricks and tips in the help section. You should read them if this is your first time playing SpeedSlide.
• [N]ew Game: Starts the game from level 1-1.
• [A]bout: Displays the information about the game development team.
• [Q]uit: Leaves the game.

You can select an option by entering the corresponding key, followed by enter. The menu will only read the first character you enter. For example, entering Hello, World! will take you to the help section.

4 Gameplay

Please refer to the help section built into the game for more information. Gameplay is not explained here to reduce redundancy.

5 Troubleshooting

1. If you experience glitching in animation...

   • Try running the game in performant mode. This will reduce the framerate of certain animations to improve performance.
   • If you are running the game from a remote terminal, try running the game locally instead.

2. If you cannot see the colours clearly...

   SpeedSlide uses standard ANSI escape codes to display colours. Actual colours are controlled by your terminal emulator. If you cannot see the colours clearly, you may need to adjust the colour settings in your terminal emulator. Sometimes, adjusting the accessibility settings of your system may also help.

0x02 Instructions for Developers

1 Build

SpeedSlide requires only standard Python without any dependencies, and is readily runnable when you have all files properly placed.

2 Debug Mode

Debug mode is enabled by the --debug command line argument. When you are in debug mode, there will be a prompt displayed at the bottom of the screen indicating so.

The following debug mode exclusive features are included in the original code:

• Simplified board shuffling: The board will only be shuffled for 3 moves regardless of the random target moves generated during runtime. This makes solving the puzzle easier for debugging purposes.
• /pass-a command during gameplay: This command skips the current level and make the game think that the player passed the level above the target moves (i.e. the player will stay on the same level).
• /pass-b command during gameplay: This command skips the current level and make the game think that the player passed the level below the target moves (i.e. the player will be promoted to the next level).

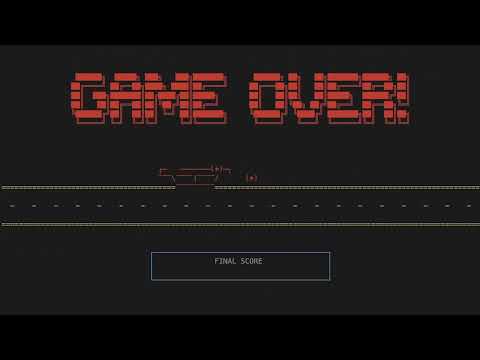

• /fail command during gameplay: This command fails the current level and the game should show the 'Game Over' screen.

If you wish to add more debug mode exclusive codes, you can check the flag speed_slide.__game_consts._Constants.DEBUG. The type of the value is boolean.

3 Project Structure

This is an overview of the project's files. Note that the structure of tui is not shown here. For more information about the tui module, please refer to the separate file at ./tui/README.md.

speed_slide/
├── __game_consts.py
├── __init__.py
├── io.py
└── game_scenes/
    ├── __init__.py
    ├── __random_events_ascii_arts.py
    ├── about_scene.py
    ├── game_level_title_scene.py
    ├── game_over_scene.py
    ├── goodbye_scene.py
    ├── help_scene.py
    ├── level_summary_scene.py
    ├── main_game_menu_scene.py
    ├── main_game_scene.py
    ├── title_scene.py
    └── customised_controls/
        ├── __init__.py
        └── score_label.py

Major and important classes and functions are documented here.

NOTE: This is not an exhaustive list of all classes and functions. Only those that are significant are documented here. For other classes and functions, refer to the docstrings in the source code.

File speed_slide/__game_consts.py)

Class _Constants

• Although named "Constants", the value of the members can be modified during runtime, especially at launch. However, this is not recommended to do so during runtime.
• Intended for internal use only.
• Members:
  • ANIMATION_SECONDS_PER_FRAME: float - The duration between each frame of the animations. Measured in seconds. Default: 0.02 if in normal graphics mode, 0.06 if in performant mode.
  • DEBUG: bool - Whether the game is in debug mode. Default: False.
  • SCREEN_HEIGHT: int - The height of the game screen. Default: 30.
  • SCREEN_WIDTH: int - The width of the game screen. Default: 110.
  • VERSION_STRING: str - The version of the game.

File speed_slide/__init__.py

Method main(**kwargs): -> None

• Entry point exposed to the outside.
• **kwargs takes the processed command line arguments in the form of dict[key, value].

File speed_slide/io.py

Method beep(): -> None

• Produces a beep sound by printing the ASCII bell character.

Method safe_input(prompt: RichFormatText): -> str

• A safe implementation of the built-in input() function.
• prompt is the rich-formatted prompt displayed before the cursor. Multi-line prompts are supported.
• Returns the processed user input. Only printable ASCII characters are included in the return value.

File speed_slide/game_scenes/__random_events_ascii_arts.py

Class EventASCIIArts

Contains ASCII arts used in random events. This class should only be used internally. Refer to the source code for the ASCII arts and speed_slide/game_scenes/main_game_scene.py for information on random events.

File speed_slide/game_scenes/about_scene.py

Class AboutScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the information about the game development team is shown.

File speed_slide/game_scenes/game_level_title_scene.py

Class GameLevelTitleScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the title of the current level is shown.

File speed_slide/game_scenes/game_over_scene.py

Class GameOverScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the 'Game Over' message is shown.

File speed_slide/game_scenes/goodbye_scene.py

Class GoodbyeScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the goodbye message is shown. Displayed when the player quits the game.

File speed_slide/game_scenes/help_scene.py

Class HelpScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the help information is shown.

File speed_slide/game_scenes/level_summary_scene.py

Class LevelSummaryScene

• Object inheritance: object -> tui.scene.Scene
• A scene on which the summary of the game level is shown. Information are regarding the bonus points and total points the player has earned.

File speed_slide/game_scenes/main_game_menu_scene.py

Class MainGameMenuScene

• Object inheritance: object -> tui.scene.Scene
• The main menu that is displayed upon successful launch of the game.

File speed_slide/game_scenes/main_game_scene.py

Class MainGameScene

• Object inheritance: object -> tui.scene.Scene
• This is where the game UI and game logic are implemented.

Class __GameBoard

• An internal class that represents the game board and provides several useful methods for interacting with the board.

File speed_slide/game_scenes/title_scene.py

Class TitleScene

• Object inheritance: object -> tui.scene.Scene
• The ASCII art of the title "SpeedSlide" is animated and displayed in this scene.

File speed_slide/game_scenes/customised_controls/score_label.py

Class ScoreLabel

• Object inheritance: object -> tui.controls.Control
• A customised control that supports display and animating an integer score for up to 10 digits (positive, 9 digits if negative).
• Although it uses an internal TxtLabel control, it does not inherit from it and hence they do not share the same members.

4 Game Mechanics

The game is implemented through an internal class __GameBoard. The class stores the board's status in the format of dict[tuple[int, int], int], where the key of the dictionary is the coordinates of the number block, and the value being the number.

At the start of each level, a new __GameBoard is created, which contains a game board in its solved state. Then, the board is shuffled. To ensure solvability, shuffling always starts with the initial state of a solved board. The slide() function of __GameBoard is called to slide a certain block into the empty space for several times.

To find the blocks that are available for sliding, a method find_adjacent() can be called. The function looks up the four possible locations, namely the blocks above, below, on the left of, on the right of the empty space. The results are stored in __GameBoard.adjacent, which is a list. The maximum possible length of the list is 4, since adjacent blocks can be less than 4 when the empty space is at the edges.

Each time the slide() function is called, it will check whether the block the player is trying to slide is within __GameBoard.adjacent, and make the move if the slide is possible. True is returned for a successful slide, and False otherwise.

Every time the board is updated, __check_if_solved() is called to check whether the board has been solved. And the main game loop will use this information to determine whether to exit the loop and return the results.
