02b-variables.md

Creating Your Own Variables

The concept of variables is fundamental to programming and extends beyond just a few p5.js built-in variables. You can also create your own variables to store data and make your code easier to read, more descriptive, and easier to change.

Off to the Races

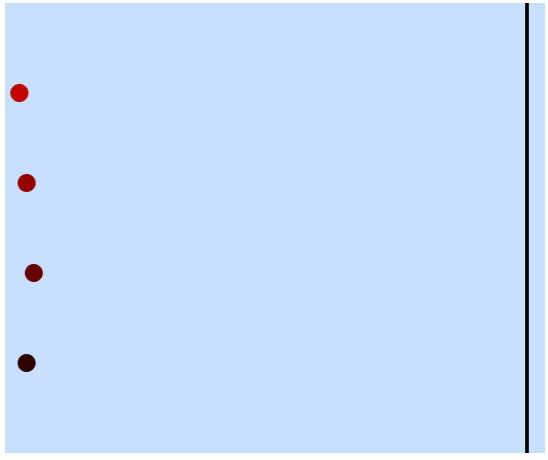

Our goal is to make a series of circles race across the screen to the finish line:

Often when you write code you'll start with a first draft the way you would when writing an essay. The process of refining and working toward the final draft that is the most clear and efficient is what is known as refactoring. We'll do some refactoring together here.

Let's start by getting the background and finish line up on the canvas.

function setup() {
  createCanvas(600, 500);
}

function draw() {
  background(200, 225, 255);

  strokeWeight(4);
  stroke(0)
  line(580, 0, 580, height);
}

Not worrying about any movement yet, let's draw 4 ellipses on the left hand side of the canvas. Add this to the code:

function draw() {
  //...previous code
  strokeWeight(1)

  ellipse(0, 100, 100, 100);
  ellipse(0, 200, 100, 100);
  ellipse(0, 300, 100, 100);
  ellipse(0, 400, 100, 100);
}

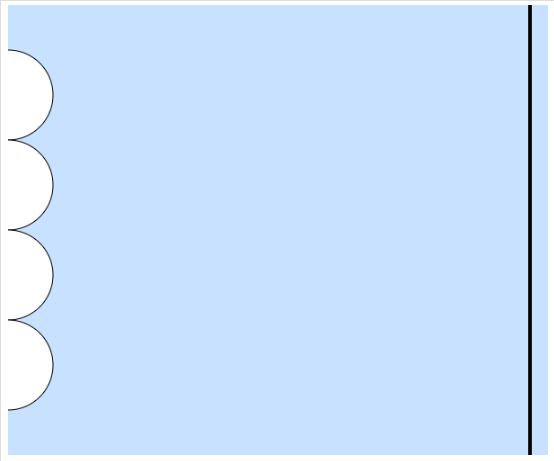

The circles seem way too big. No worries...

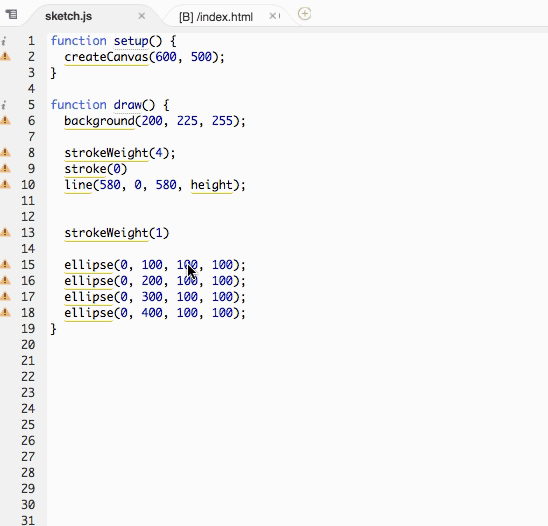

Wow... that was painful to watch... so slow. What if I want to change the size again??

There must be a better way.

Notice how all those values are the same. Wouldn't it be great if I could change that value in one place and it would change everywhere in the code?

Well, there is a way to do this-- We can create our own variables.

Declaring and Assigning Variables

Making a variable start's with a name. Naming variables can sometimes be surprisingly difficult. The trick is to make it descriptive and sensical to any other developer reading your code. "Other developer" can even mean you in a few days from now! You will be shocked by how quickly you can forget what is going on in your own code when you revisit it.

Since that number that was the same for every ellipse is the size of each racing circle, I'll call it racerSize. You can choose another name, but it should be a reasonable choice that describes the value it represents.

Making a variable is pretty simple, at the top of the file outside any function write

var racerSize = 60;

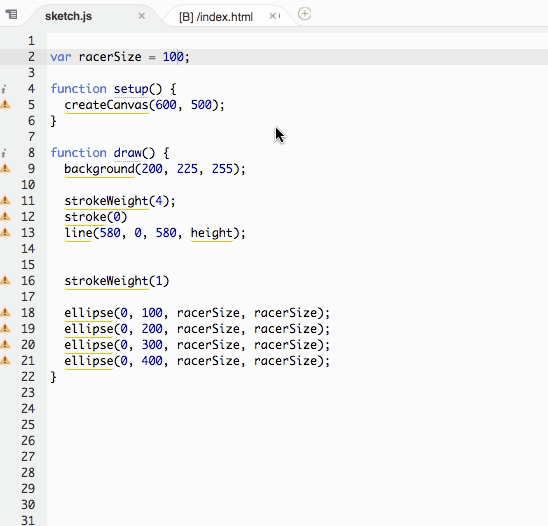

That's it. Now instead of hard-coding in the number 60 or whatever it is, place the variable name racerSize as the third and fourth arguments to each ellipse function. Check this out:

SO MUCH NICER! Not only is our job easier if we have to change something, the code is easier to understand.

Though that seemed pretty straightforward, there are actually two distinct parts to creating a variable. We wrote it out on one line, but you can also write it out across two. Let's do that here to be super clear.

var racerSize;
racerSize = 60;

Variable Declaration

The first step is to say "hey, I want a new variable called racerSize to exist". We can't just go ahead and say that this variable now contains the value 60 when the container doesn't even exist yet! That's what the first line var racerSize; does. var stands for variable.

Variable Assignment

At this point the variable racerSize exists, but it has no value, it's an empty bucket. We have to assign a value to the variable. We do that with an =. That's what's happening on the second line racerSize = 60;

You'll often see this done on one line, but it's important to understand that it's conceptually two distinct parts. There are also times when a variable will have to be declared but assigned a value later.

🔔🔑💡 Tip 💡🔑🔔

You are probably familiar with variables from math class. While there are some similarities, there are also some key differences. In math x = 3 and 3 = x signify the same thing. This is NOT the case in computer programming. It's very important that on the LEFT HAND side of the = is the variable you are assigning a value to. On the RIGHT HAND side must be the value to be assigned. 60 = racerSize; is not valid code :(

A Quick Refactor

I see an additional place that we may want to use variables, that is the starting location of each ellipse. Though not exactly the same value, there is definitely a relationship between each starting location.

Let's add two variables startX and startY. The first argument to every ellipse function will be startX, and the second argument will have some relationship to our initial value of startY.

var racerSize = 40;
var startX = 0;
var startY = 100;

function setup() {
  createCanvas(600, 500);
}

function draw() {
  background(200, 225, 255);

  strokeWeight(4);
  stroke(0)
  line(580, 0, 580, height);


  strokeWeight(1)

  ellipse(startX, startY, racerSize, racerSize);
  ellipse(startX, startY * 2, racerSize, racerSize);
  ellipse(startX, startY * 3, racerSize, racerSize);
  ellipse(startX, startY * 4, racerSize, racerSize);
}

So we didn't change what the program does at all, but we made it easier to change if we ever need to in the future. That's the sign of a good refactoring!

Movement

p5.js's ability to animate things is possible because of the fact that draw is called repeatedly over and over.

The way to think about moving our circles across the screen is that each time the draw function is called the x coordinate of the ellipse needs to be a different value. The number needs to have increased for the shape to move rightward. If it was 10 it needs to be something like 12 (or really any number bigger than 10).

This is a perfect place to use a variable because we need a value for the x coordinate, but we don't know exactly what number it needs to be. In fact, it needs to continually change and grow.

Incrementing Variables

Imagine you have a variable called age that stores the value of your current age. Then you have a birthday! You'd have to tell your variable that it's new value should be whatever it's current value is plus one additional year.

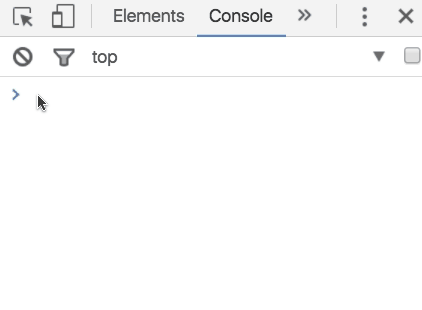

Here's how that is done in code:

Notice that line:

age = age + 1;

That's another thing about variables that doesn't make sense from math class. Of course age would never be equal to age + 1. The difference is that here the equals sign doesn't mean the one side equals the other, it's about assigning the value on the right to the variable on the left. We are actually saying that the new value of age should be assigned to whatever the current value is + 1, which is just what we wanted to say. Note that we never used the word var, the variable was already declared and only had to be re-assigned a new value.

This is a really common thing in programming, increasing, or incrementing, a variable. It's so common there's even a shortcut for it. Writing age += 1 is exactly the same as age = age + 1.

You can also decrease, or decrement a value. y = y - 10 or y -= 10. Both assign a new value to y that is 10 less than it's current value.

Getting the Racers to Move, Finally

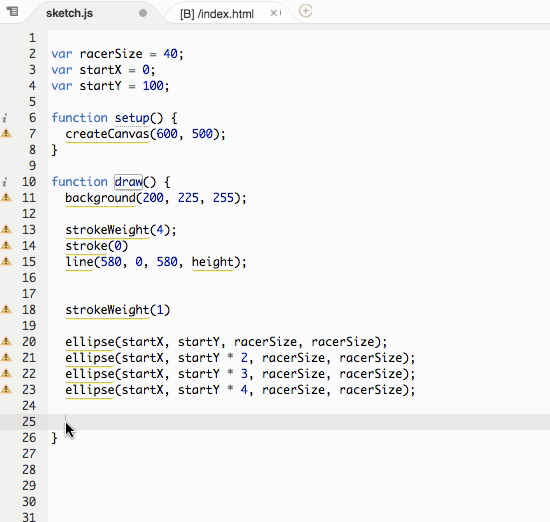

At the bottom of draw after all the other code has ran, but before draw is called the next time, we need to tell our variable to increment it's value so it will be bigger for the next call to draw.

Hopefully that was clear, let that take a moment to sink in before seeing how it's all put together.

A 4 way tie! Every time draw is called the x coordinate of each circle has increased by 2. Here's the final code with an additional variable speed:

var racerSize = 40;
var startX = 0;
var startY = 100;
var speed = 2;

function setup() {
  createCanvas(600, 500);
}

function draw() {
  background(200, 225, 255);

  strokeWeight(4);
  stroke(0)
  line(580, 0, 580, height);


  strokeWeight(1)

  ellipse(startX, startY, racerSize, racerSize);
  ellipse(startX, startY * 2, racerSize, racerSize);
  ellipse(startX, startY * 3, racerSize, racerSize);
  ellipse(startX, startY * 4, racerSize, racerSize);

  startX = startX + speed;
}

Mini-Challenge

1. You probably noticed all 4 racers move at the same speed. Take the code above and modify it so the different circles move at different speeds. Replace the variable speed with at least 3 different speed variables such as winningSpeed, averageSpeed, losingSpeed. To make the different racers move differently you'll need multiple variables for their x locations instead of one variable startX. As a suggestion you could use racer1X, racer2X, etc. All of those variables will need to be incremented at the bottom of draw.
2. STRETCH GOAL -- Only if you have time. Use a variable to make each racer a different shade of the same color. Look at the way the startY variable is used for inspiration.
